Enterprise Integration Patterns (EIP) with OpenESB Part 1 : Content-Based Router

30 Wednesday May 2012

Posted by Padmarag Lokhande in BPEL, Integration, Java, SOA

≈ 1 Comment

This is first of the series Enterprise Integration Patterns with OpenESB where we will cover Enterprise Integration Patterns using OpenESB.


According to Enterprise Integration Patterns,

The Content-Based Router examines the message content and routes the message onto a different channel based on data contained in the message. The routing can be based on a number of criteria such as existence of fields, specific field values etc. When implementing a Content-Based Router, special caution should be taken to make the routing function easy to maintain as the router can become a point of frequent maintenance. In more sophisticated integration scenarios, the Content-Based Router can take on the form of a configurable rules engine that computes the destination channel based on a set of configurable rules.

Content Based Router

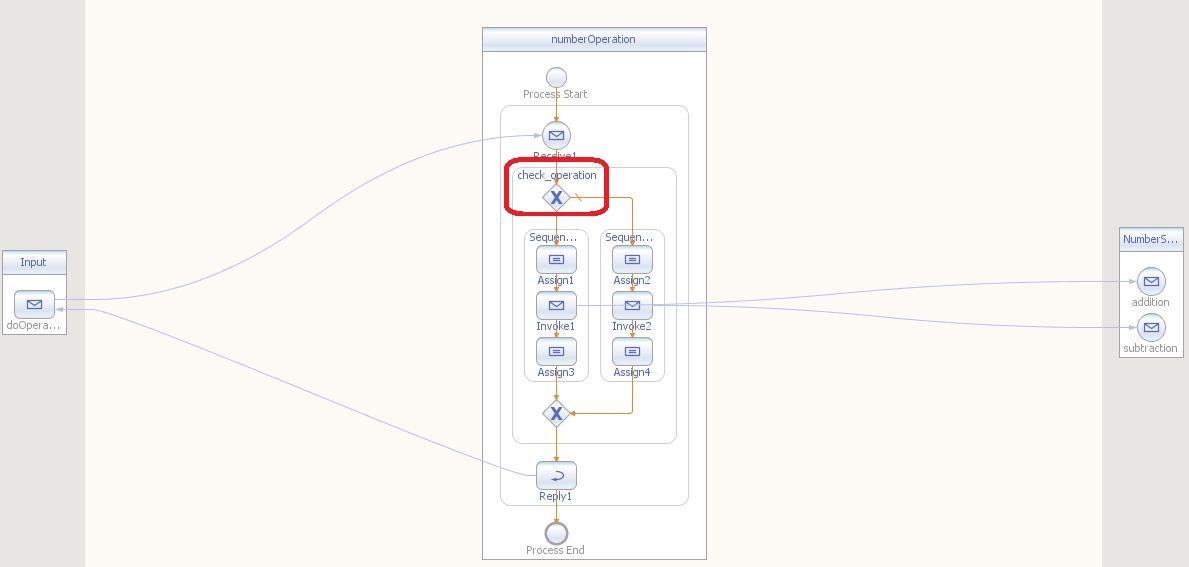

It can be achieved in OpenESB using “If” component.

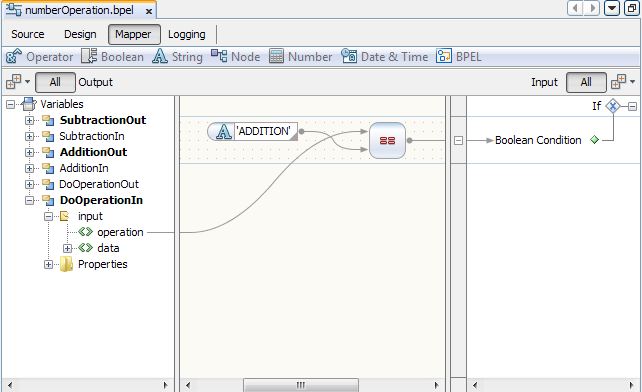

In this example it simply checks for the value in “num:operation” element.

<soapenv:Envelope xsi:schemaLocation="http://schemas.xmlsoap.org/soap/envelope/ http://schemas.xmlsoap.org/soap/envelope/" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:num="http://xml.aurorite.com/schema/NumberOperationSchema">
  <soapenv:Body>
    <num:OperationRequest>
      <num:operation>ADDITION</num:operation>
      <num:data>
        <num:number1>20</num:number1>
        <num:number2>30</num:number2>
      </num:data>
    </num:OperationRequest>
  </soapenv:Body>
</soapenv:Envelope>
Advertisement

Share this:

  • Click to share on Twitter (Opens in new window)
  • Click to share on Facebook (Opens in new window)
  • Click to share on Tumblr (Opens in new window)
  • Click to share on LinkedIn (Opens in new window)
  • Click to share on Reddit (Opens in new window)
  • Click to share on Pinterest (Opens in new window)
  • Click to email a link to a friend (Opens in new window)
  • Click to print (Opens in new window)

Like this:

Like Loading...

Can a SOA be designed with REST?

29 Tuesday May 2012

Posted by Padmarag Lokhande in BPEL, Integration, REST, SOA, Uncategorized

≈ Leave a comment

Tags

REST, soa

Recently I answered a question on stackoverflow.com asking can a SOA be designed with REST? I’m cross-posting the answer here.




At a high Level the answer is Yes, however not completely.

SOA requires thinking about the system in terms of

  • Services (well-defined business functionality)
  • Components (discrete pieces of code and/or data structures)
  • Processes (Service orchestrations. Generally using BPEL)

Being able to compose new higher level services or business processes is a basic feature of a good SOA. XML, SOAP based Web Services and related standards are good fit for realizing SOA.

Also SOA has a few accepted principles – http://en.wikipedia.org/wiki/Service-oriented_architecture#Principles

  • Standardized service contract – Services adhere to a communications agreement, as defined collectively by one or more service-description documents.
  • Service Loose Coupling – Services maintain a relationship that minimizes dependencies and only requires that they maintain an awareness of each other.
  • Service Abstraction – Beyond descriptions in the service contract, services hide logic from the outside world.
  • Service reusability – Logic is divided into services with the intention of promoting reuse.
  • Service autonomy – Services have control over the logic they encapsulate.
  • Service granularity – A design consideration to provide optimal scope and right granular level of the business functionality in a service operation.
  • Service statelessness – Services minimize resource consumption by deferring the management of state information when necessary.
  • Service discoverability – Services are supplemented with communicative meta data by which they can be effectively discovered and interpreted.
  • Service composability – Services are effective composition participants, regardless of the size and complexity of the composition.

A SOA based architecture is expected to have Service Definition. Since RESTful web services lack a definitive service definition (similar to wsdl), it is difficult for a REST based system to fulfill most of the above principles.

To achieve the same using REST, you’d need to have RESTful Web Services + Orchestration (possible using some lightweight ESB like MuleESB or Camel)

Please also see this resource – From SOA to REST


Adding this part as clarification for below comment –

Orchestration is required to compose processes. That’s what provides the main benefit of SOA.

Say you have a order processing application with operations like
–

  • addItem
  • addTax
  • calculateTotal
  • placeOrder

Initially you created a process (using BPEL) which uses these operations in sequence. You have clients who use this Composed Service. After a few months a new client comes who has tax exemption, then instead of writing new service, you could just create a new process skipping the addTax operation. Thus you could achieve faster realization of business functionality just by re-using existing service. In practice there are mutiple such services.

Thus BPEL or similar (ESB or routing) technology is essential for SOA. Without business use, a SOA is not really a SOA.
